OSPF单区域_I和II类LSA

发表于 Valine：
本文字数： 8k 阅读时长 ≈ 7 分钟

域内OSPF详情

I类LSA

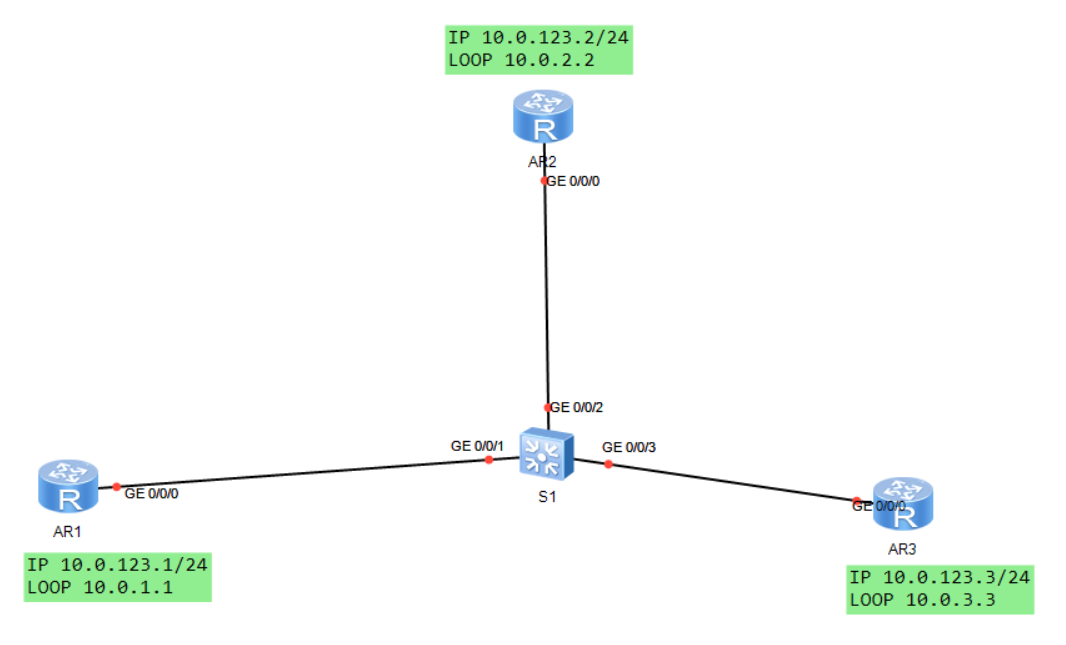

pa

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[R2-ospf-1-area-0.0.0.0]`dis ospf lsdb router self-originate`  //查看I类LSA

	 OSPF Process 1 with Router ID 10.0.2.2
		         Area: 0.0.0.0
		 Link State Database


  Type      : Router
  Ls id     : 10.0.2.2
  Adv rtr   : 10.0.2.2  //通告路由器，产生此条LSA的路由器的route id
  Ls age    : 582
  Len       : 48
  Options   :  E
  seq#      : 80000007
  chksum    : 0xb052
  Link count: 2
   * Link ID: 10.0.123.3   //DR接口的IP地址
     Data   : 10.0.123.2   //宣告这条LSA的路由器接口IP地址
     Link Type: TransNet     //拓扑信息，描述本路由器到一个MA网段
     Metric : 1
   * Link ID: 10.0.2.2
     Data   : 255.255.255.255
     Link Type: StubNet      //路由信息，描述本路由器到一个stub网段的连接
     Metric : 0
     Priority : Medium

II类LSA

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<R3>`dis ospf lsdb network self-originate`

	 OSPF Process 1 with Router ID 10.0.3.3
		         Area: 0.0.0.0
		 Link State Database


  Type      : Network
  Ls id     : 10.0.123.3   //DR接口的IP的地址
  Adv rtr   : 10.0.3.3
  Ls age    : 1380
  Len       : 36
  Options   :  E
  seq#      : 80000009
  chksum    : 0xee9c
  Net mask  : 255.255.255.0
  Priority  : Low
     Attached Router    10.0.3.3  //建立邻接关系的邻居的route-id
     Attached Router    10.0.1.1
     Attached Router    10.0.2.2

debugging（查看抢占过程）

  1. 由于DR和BDR为非抢占方式，根据设备配置的先后顺序可能导致DR为先启动的设备。
  2. DR和BDR是根据接口选举的
    • DR优先级越大越优先
    • 优先级相等时，route-id越大越优先
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
<R3>terminal debugging
Info: Current terminal debugging is on.
<R3>terminal monitor
Info: Current terminal monitor is on.
<R3>debugging ospf 1 event
<R3>sy
Enter system view, return user view with Ctrl+Z.
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]undo shut
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:21-08:00 R3 %%01IFPDT/4/IF_STATE(l)[6]:Interface GigabitEthern
et0/0/0 has turned into UP state.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:21-08:00 R3 %%01IFNET/4/LINK_STATE(l)[7]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:21.143.4-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802c Line: 1295 Level: 0x20

  OSPF 1: Intf 10.0.123.3 Rcv InterfaceUp State ` Down -> Waiting. `
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:21.143.5-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802c Line: 1409 Level: 0x20

  OSPF 1 Send Hello Interface Up on 10.0.123.3
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:55-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes eve
nt: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighbo
rEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:55-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes eve
nt: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighbo
rEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:55.73.3-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1136 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv HelloReceived State  ` Down -> Init ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:55.73.4-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1732 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv 2WayReceived State ` Init -> 2Way ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:56-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=2.123.0.10, Neighb
orEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:56.393.2-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1136 Level: 0x20

  OSPF 1: Nbr 10.0.123.2 Rcv HelloReceived State Down -> Init.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:58-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[11]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighb
orEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:58.653.3-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1732 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv AdjOk? State ` 2Way -> ExStart ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:58.653.4-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802c Line: 2096 Level: 0x20

  OSPF 1 Send Hello Interface State Changed on 10.0.123.3
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:22:58.653.5-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802c Line: 2107 Level: 0x20

  OSPF 1: Intf 10.0.123.3 Rcv WaitTimer State ` Waiting -> DR ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:03-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[12]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=2.123.0.10, Neighb
orEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)

[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:03-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[13]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=2.123.0.10, Neighb
orEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exc
hange)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:04-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[14]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=2.123.0.10, Neighb
orEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loadi
ng)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:04-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[15]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=2.123.0.10, Neighb
orEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:03.923.1-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1732 Level: 0x20

  OSPF 1: Nbr 10.0.123.2 Rcv 2WayReceived State Init -> ExStart.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:03.963.1-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1845 Level: 0x20

  OSPF 1: Nbr 10.0.123.2 Rcv NegotiationDone State ` ExStart -> Exchange ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:04.13.1-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1957 Level: 0x20

  OSPF 1: Nbr 10.0.123.2 Rcv ExchangeDone State ` Exchange -> Loading `.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:04.13.2-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 2356 Level: 0x20

  OSPF 1: Nbr 10.0.123.2 Rcv LoadingDone State  ` Loading -> Full ` .
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[16]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighb
orEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exc
hange)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09.633.2-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1845 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv NegotiationDone State ExStart -> Exchange.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09.683.1-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 1957 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv ExchangeDone State Exchange -> Loading.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09.683.2-08:00 R3 RM/6/RMDEBUG:
 FileID: 0xd017802d Line: 2356 Level: 0x20

  OSPF 1: Nbr 10.0.123.1 Rcv LoadingDone State Loading -> Full.
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[17]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighb
orEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loadi
ng)
[R3-GigabitEthernet0/0/0]
Aug  5 2021 10:23:09-08:00 R3 %%01OSPF/4/NBR_CHANGE_E(l)[18]:Neighbor changes ev
ent: neighbor status changed. (ProcessId=256, NeighborAddress=1.123.0.10, Neighb
orEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[R3-GigabitEthernet0/0/0]
